KRIX VORTEX MK2 CENTRE SPEAKER
- Dedicated midrange for vocal detail and clarity
- Remarkable, tight bass
- Vertically aligned tweeter and midrange ensures sound is heard throughout the room
With a design based on the highly successful Harmonix Mk2, the Vortex Mk2 delivers vocal clarity, midrange depth and a dynamic bass response. The vertical arrangement of the tweeter and midrange drivers eliminates phasing problems if seated off-axis, ensuring even sound distribution so that every seat in the room is a good one.

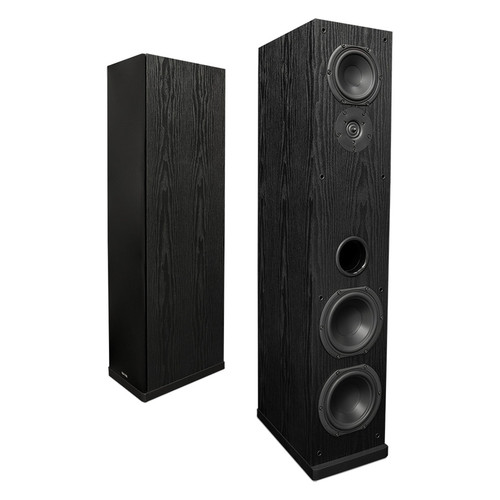

The drivers are identical to the Krix floorstanding Harmonix Mk2 main speakers, providing perfect timbral matching, delivering a full soundstage that is seamless in its transition from left to right.
Big, dual 165mm bass drivers come with heavy-duty voice coils, wound on high-powered aluminium formers, while the 130mm midrange driver has an oversized magnet for lower distortion. The 26mm high frequency driver, with its wave-guide plug, also ensures controlled directivity.
The sonic strength of the Vortex Mk2 will provide your system with the ultimate in realism, ensuring your home theatre comes alive!
For the ultimate sound experience at home, play it through Krix.
Frequency Range
35Hz-40kHz in room response
Power Handling
50 – 250 Watts RMS recommended amplifier power
Sensitivity
91dB for 2.83 volts at 1 metre
Impedance
Nominally 6 Ohms (minimum 3 Ohms)
Configuration
3-way
Enclosure Type
Dual chambers – sealed midrange chamber with bass reflex main chamber. Front vented with internal and external flaring
Dimensions
230mm high x 725mm wide x 370mm deep
Low Frequency Drivers
2 x nominal 165mm (6½”) laminated polypropylene cones. 33mm (1¼”) voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilization ring for low distortion
Mid Frequency Driver
1 x nominal 130mm (5″) coated paper cone. 26mm (1″) voice coil wound on high powered aluminium former, using copper shorting ring and oversized magnet for lower distortion
High Frequency Driver
25mm (1″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Non-reflective dual chambered magnet structure with copper shorting ring to lower distortion
Input Terminals
Dual gold plated bi-wire binding posts (bi-wireable, bi-ampable)
Weight
24kg each
