15 degree angled baffle 'key hook' style mounting plate and rear terminal plate compact design grille included

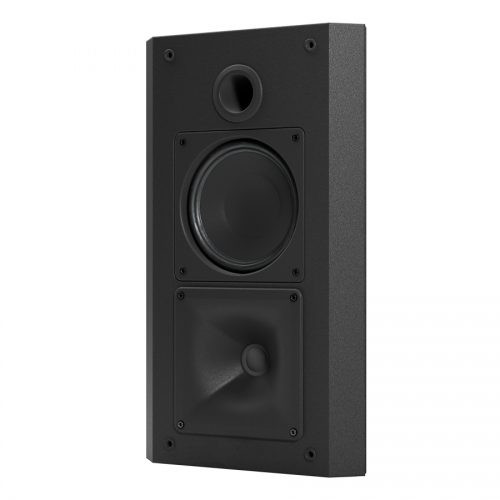

The Phonix loudspeaker offers high power handling and high sensitivity with low frequency extension down to 45Hz. The enclosure is braced and critically damped. The high frequency drive unit is a specially damped, high power, 26mm doped fabric dome tweeter delivering a frequency response that is exceptionally smooth and well controlled, setting a new benchmark for surround loudspeaker reproduction. The single 165mm (6½”) bass driver has a 33mm (1¼”) voice coil wound on high powered aluminium former, with ventilated spider and aluminium flux stabilization ring for low distortion. The polypropylene cone and surround of the bass driver have been developed to provide the smoothest possible response and a dynamic and non-fatiguing vocal mid-band. The crossover network has been designed and built using close tolerance, professional grade components, perfectly blending the output from the two drive units. Matching the acoustic phase of both units through the crossover region ensures the widest possible coverage. .
Frequency Range:45Hz - 20kHz (-10dB)Power Handling:50 - 150 Watts RMS recommended amplifier powerSensitivity:88dB SPL - 2.83V at 1mImpedance:8 OhmsConfiguration:6½ inch 2-wayCrossover Point:1.8kHzBass Driver(s):Single 165mm (6½”) paper cone driver. 33mm (1¼”) voice coil wound on high powered kapton former, with ventilated magnet assembly and copper shorting ring for low distortionHigh Frequency Driver:26mm (1”) doped fabric dome with large roll surround. Ferro fluid cooledEnclosure Type:Bass reflex, front vented, rear terminalDimensions:375mm high x 260mm wide x 205mm deep at the top (109mm deep at the bottom)Weight:7kg .
