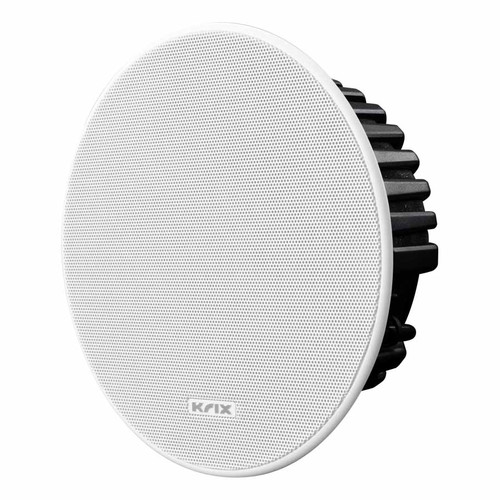

IC-32
(Hemispherix A20)
IN CEILING
- Sound directed to your listening position
- High fidelity performance in your ceiling
- Fully-enclosed back box
Featuring an angled baffle behind the slim magnetic grille, the IC-32 directs sound towards your seating position for improved clarity in high definition music and movies.
Part of the Krix Architectural Series, the IC-32 (Hemispherix A20) can be used for home theatre, stereo listening, or high-quality background music. It features a 20 degree angled baffle to project the sound to your primary listening area, meaning less sound is reflected off walls and other surfaces. Your experience is clearer, there is a more three-dimensional soundstage, better definition for music listening, more articulate dialogue, and more realistic and involving sound effects in movies.
The fully-enclosed back box maximises and controls bass, protects from ceiling debris and drastically reduces sound leakage into adjoining rooms. With speaker components mounted directly to the front baffle of the speaker, the IC-32 delivers a true high fidelity sound in a neat package.
Tonally balanced to the Krix floorstanding and bookshelf range, the IC-32 allows you to enjoy accurate and controlled bass, as well as midrange clarity delivered by a 100mm driver with a large magnet and aluminium shorting ring. Extended high frequency performance is provided by the 26mm ring radiator tweeter.
The paintable bezel grille, which is slim and attractively-styled in rust-resistant stainless steel, locks onto magnets at the front of the speaker for easy installation, producing the ultimate sound with magical simplicity.
Frequency Range
65Hz-40kHz in room response
Power Handling
20 – 100 Watts RMS recommended amplifier power
Sensitivity
86dB for 2.83 volts at 1 metre
Impedance
Nominally 6 Ohms (minimum 4.2 Ohms)
Configuration
2-way
Enclosure Type
Bass reflex, front vented
Dimensions
255mm diameter x 157mm mounting depth
Low Frequency Driver
Nominal 100mm (4”) doped paper cone. 25mm (1”) voice coil wound on high temperature Kapton former
High Frequency Driver
20mm (3/4″) dual concentric diaphragm with wave-guide centre plug for controlled directivity. Neodymium magnet
Input Terminals
Gold plated spring terminals
Cut-out Diameter
207mm recommended
Weight
2kg each
